Repair Procedures: Removal

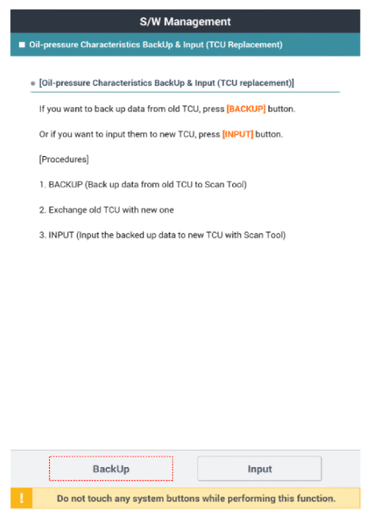

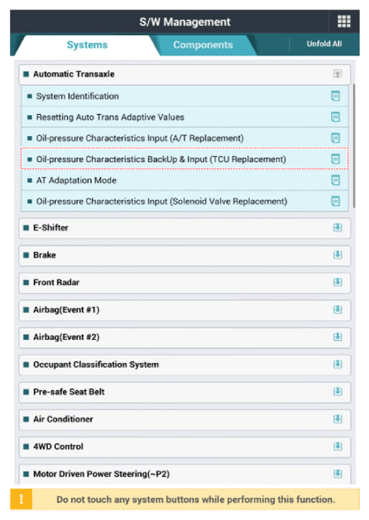

Perform the oil pressure characteristics backup procedure using the diagnostic tool when replacing with a new TCM.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
Turn ignition switch OFF and disconnect the negative (-) battery cable.

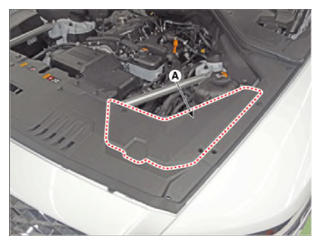

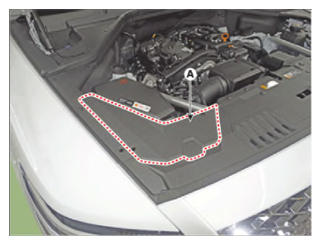

Remove the engine room side cover (A).
[RH]

Courtesy of HYUNDAI MOTOR AMERICA

[LH]

Courtesy of HYUNDAI MOTOR AMERICA

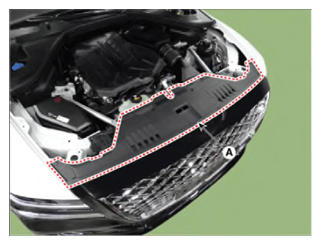

Remove the front bumper cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

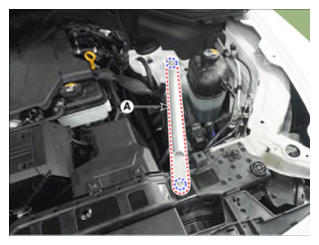

Loosen the bolts and then removing the strut bar (A)[LH].

Courtesy of HYUNDAI MOTOR AMERICA

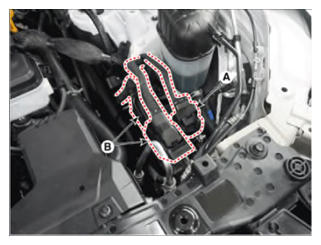

Disconnect the TCM connector (A) and the ECM connector (B).

Courtesy of HYUNDAI MOTOR AMERICA

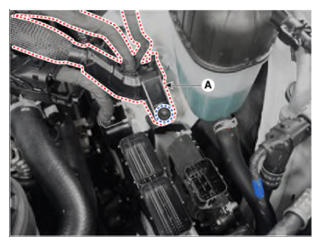

Loosen the nut and then separate the wire (A).

Courtesy of HYUNDAI MOTOR AMERICA

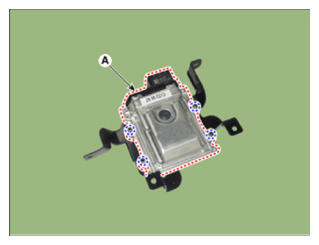

Loosen the bolts and the nuts and then removing the ECM & TCM bracket (A).
Tightening torque:

8.83 - 11.8 N.m (0.9 - 1.2 kgf.m, 6.51 - 8.68 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

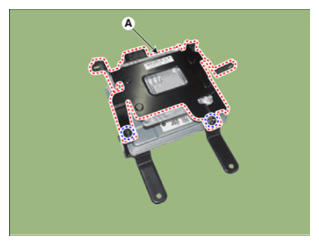

Loosen the bolts and the nuts and then removing the TCM & TCM bracket (A).
Tightening torque:

8.83 - 11.8 N.m (0.9 - 1.2 kgf.m, 6.51 - 8.68 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

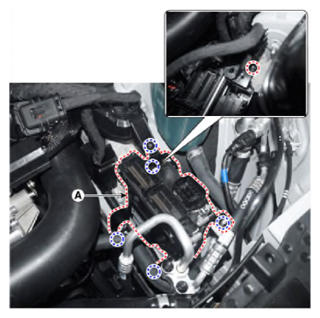

Loosen the nuts and then removing the TCM (A).
Tightening torque:

8.83 - 11.8 N.m (0.9 - 1.2 kgf.m, 6.51 - 8.68 lb-ft)
