Circuit Diagram

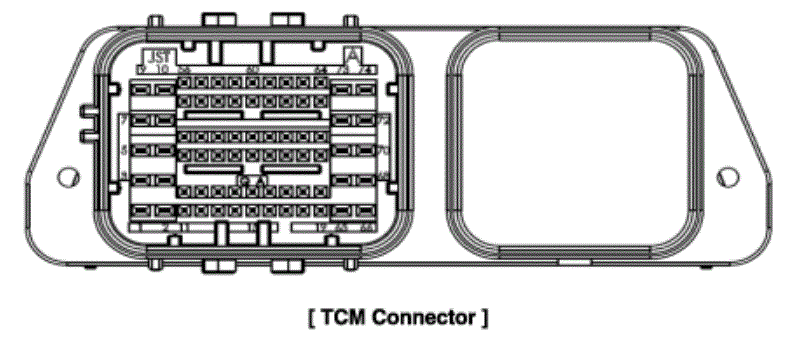

  1. TCM Connector
    G14721801Courtesy of HYUNDAI MOTOR AMERICA
  2. TCM terminal function
    Pin Description
    A1 Underdrive Clutch control solenoid valve
    A2 Damper clutch control solenoid valve
    A3 27 Brake control solenoid valve
    A4 -
    A5 6 Clutch control solenoid valve
    A6 -
    A7 Line pressure control solenoid valve
    A8 35R Clutch control solenoid valve
    A9 4 & OD Clutch control solenoid valve
    A10 8LR Brake control solenoid valve
    A11 -
    A12 Back UP Comm. (TCM→Electronic shift lever)
    A13 -
    A14 Parking switch signal "S2" (PWM)
    A15 Parking switch power (5V)
    A16 -
    A17 -
    A18 R position solenoid valve (ON/OFF)
    A19 -
    A20 Paddle shift (Down)
    A21 Paddle shift (Up)
    A22 Parking switch signal "S1" (PWM)
    A23 -
    A24 P/N relay
    A25 Oil temperature sensor (+)
    A26 Oil temperature sensor (-)
    A27 Back UP Comm. (TCM→Electronic shift lever)
    A28 -
    A29 -
    A30 -
    A31 Input speed sensor signal
    A32 Output speed sensor signal
    A33 -
    A34 -
    A35 -
    A36 -
    A37 -
    A38 -
    A39 -
    A40 Back UP Comm. (TCM→Electronic shift lever)
    A41 -
    A42 -
    A43 CAN HIGH
    A44 CCP CAN LOW
    A45 SS-A solenoid valve (ON/OFF)
    A46 -
    A47 -
    A48 -
    A49 Parking switch ground
    A50 -
    A51 -
    A52 CAN LOW
    A53 CCP CAN HIGH
    A54 P position solenoid valve (ON/OFF)
    A55 Back-up lamp relay
    A56 Output speed sensor (power), 9V
    A57 -
    A58 Input speed sensor (power), 9V
    A59 -
    A60 -
    A61 -
    A62 -
    A63 -
    A64 -
    A65 Solenoid valve power 1 (UD, 27, 8LR, DC)
    A66 Solenoid valve power 2 (4 & OD, 35R, 6C, LP)
    A67 Power (VB)
    A68 Power (VB)
    A69 -
    A70 Solenoid valve power 3 (ON/OFF)
    A71 Ground
    A72 Solenoid valve power 4 (ON/OFF)
    A73 -
    A74 -
  3. TCM terminal input/output signal
    Pin Description Condition Input/Output Value
    Type Level
    A1 Underdrive clutch control solenoid valve - Output 0V/Battery voltage level
    9V < Battery voltage level <16V
    A2 Damper clutch control solenoid valve - Output 0V/Battery voltage level
    9V < Battery voltage level <16V
    A3 27 Clutch control solenoid valve - Output 0V/Battery voltage level
    9V < Battery voltage level <16V
    A5 6 clutch control solenoid valve - Output 0V/Battery voltage level
    9V < Battery voltage level <16V
    A7 Line pressure control solenoid valve - Output 0V/Battery voltage level
    9V < Battery voltage level <16V
    A8 35R Clutch control solenoid valve - Output 0V/Battery voltage level
    9V < Battery voltage level <16V
    A9 4 & OD Clutch control solenoid valve - Output 0V/Battery voltage level
    9V < Battery voltage level <16V
    A10 8LR Clutch control solenoid valve - Output 0V/Battery voltage level
    9V < Battery voltage level <16V
    A14 Parking switch signal S2 (Not P) ON Input Battery voltage level
    OFF 0V (GND)
    A18 R position solenoid valve (ON/OFF) - Output 0V/Battery voltage level
    9V < Battery voltage level <16V
    A22 Parking switch signal S1 (P) ON Input Battery voltage level
    OFF 0V (GND)
    A24 P/N relay ON Output About 1V
    OFF Battery voltage level
    A25 Oil temperature sensor (+) - Input Maximum 5V voltage level
    A26 Oil temperature sensor (-) - Input Minimum 0V voltage level
    A31 Input speed sensor signal - Pulse Input Low: About 0.7V, High: 1.4V
    Maximum/Minimum Frequency: 9 kHz/0Hz
    A32 Output speed sensor signal - Pulse Input Low: About 0.7V, High: 1.4V
    Maximum/Minimum Frequency: 9 kHz/0Hz
    A45 SS-A solenoid valve (ON/OFF) - Output 0V/Battery voltage level
    9V < Battery voltage level <16V
    A54 P position solenoid valve (ON/OFF) - Output 0V/Battery voltage level
    9V < Battery voltage level <16V
    A55 Back-up lamp relay ON Output 0V
    OFF Battery voltage level
    A56 Output speed sensor power ON Output About 9V voltage level
    OFF 0V
    A58 Input speed sensor power ON Output About 9V voltage level
    OFF 0V
    A65 Solenoid supply power 1 - Power Battery voltage level
    (UD/C, 27/B, 8LR/B, D/C) 9V < Battery voltage level <16V
    A66 Solenoid supply power 2 - Power Battery voltage level
    (4 & OD/C, 35R/C, 6/C, L/P) 9V < Battery voltage level <16V
    A67 Battery power ON Power 0V/Battery voltage level
    OFF 9V < Battery voltage level <16V
    A68 Battery power ON Power 0V/Battery voltage level
    OFF 9V < Battery voltage level <16V
    A70 ON/OFF Solenoid supply power 3 - Power Battery voltage level
    (P position) 9V < Battery voltage level <16V
    71 Ground - Ground 0V (GND level)
    72 ON/OFF Solenoid supply power 4 - Power Battery voltage level
    (SS-A, R position) 9V < Battery voltage level <16V
