[EWAG Position Sensor]

Output Voltage [V]	Operating Angle [%]	Range of Rod [mm]
1.04 ~ 1.24 [Setting Position]	0	0
1.72 ~ 1.92	25	2.0
2.13 ~ 2.33	40	3.2
2.67 ~ 2.87	60	4.8
3.22 ~ 3.42	80	6.4
3.76 ~ 3.96	100	8

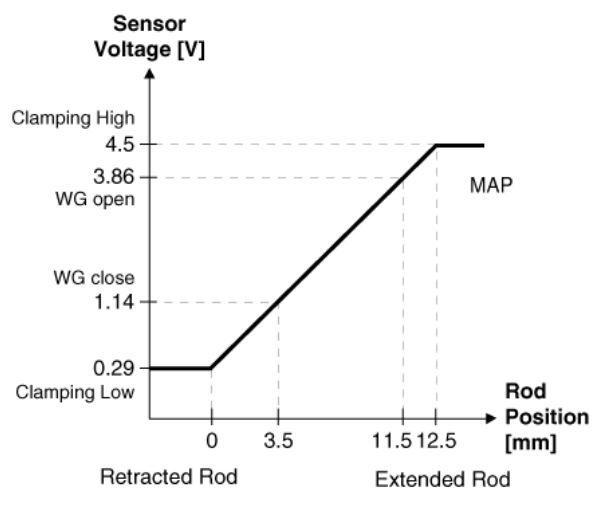

G14728761

Courtesy of HYUNDAI MOTOR AMERICA
