System Components

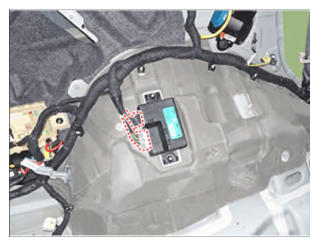

- PTG Unit
PTG unit is located in rear left luggage side trim.
PTG drive unit drive the two actuators (Spindles) by measuring the driving motors.
PTG unit also controls anti trap functions by hall sensor analysis in the anti-pinch strip.
- PTG Latch Assembly
PTG latch assembly is consist of Power Latch (A) and Power Closing Unit (B).
Power latch is located in the lower part of tail gate panel.

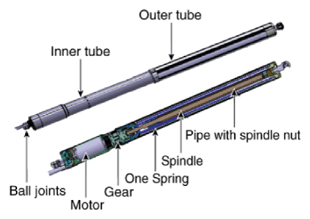

- PTG Spindle
PTG spindle open and close the tailgate by driving the motor.
- Anti-Pinch Strip
During power closing or cinching, the PTG system shall reverse to full open if an anti-pinch strip signal is received. However, the anti-pinch strips will not work when the Tailgate is idle in the full closed, full open, or stopped positions.
- SMK (Smart key)
Push the power tailgate open of the SMK more than 0.5s to open the power tailgate. Power Open operation shall be reversed when an additional Open/Close signal is received during power opening.

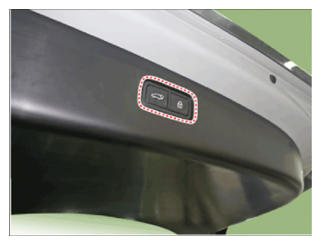

- Tailgate inner switch

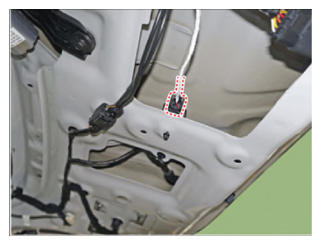

- Tailgate buzzer
When a power operation cannot be performed as requested or an obstacle has been detected.
