Integrated Body Control Unit (IBU)

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box housing.

    (Refer to Body - "GLOVE BOX ")

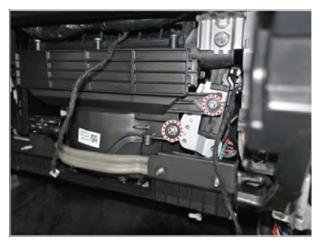

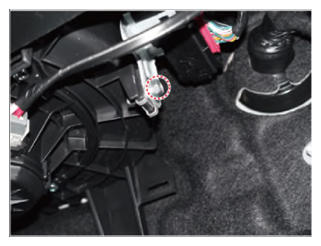

  3. Loosen IBU mounting bolt and nuts.
    G14723802Courtesy of HYUNDAI MOTOR AMERICA
    G14723803Courtesy of HYUNDAI MOTOR AMERICA

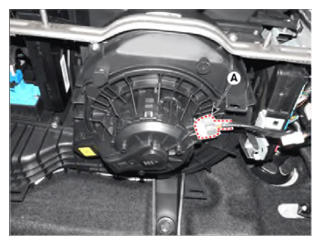

  4. Disconnect the blower motor connector (A).
    G14723804Courtesy of HYUNDAI MOTOR AMERICA

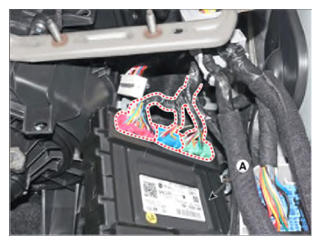

  5. Remove the IBU (A) after disconnecting IBU connectors.
    G14723805Courtesy of HYUNDAI MOTOR AMERICA
