Rear Power Window Motor

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear door trim.

    (Refer to Body - "REAR DOOR TRIM ")

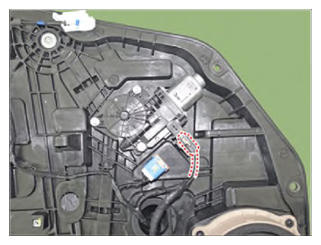

  3. Remove the rear power window motor after loosening the mounting bolts and disconnecting the connector.
    G14724051Courtesy of HYUNDAI MOTOR AMERICA
