Power Window sub (Assist/Rear) Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front/rear door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

    (Refer to Body - "REAR DOOR TRIM ")

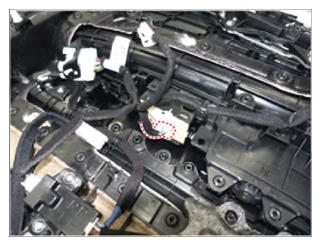

  3. Disconnect door lock switch connector.
    G14724066Courtesy of HYUNDAI MOTOR AMERICA

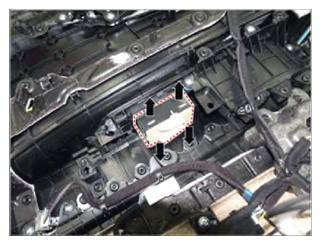

  4. Disengage the mounting clip and then remove the power window switch assembly (A).
    G14724067Courtesy of HYUNDAI MOTOR AMERICA
