Repair Procedures: Removal

  1. Remove the front bumper cover.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

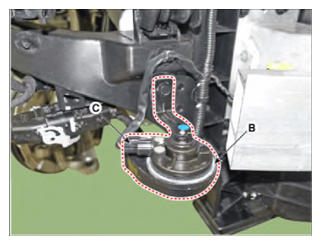

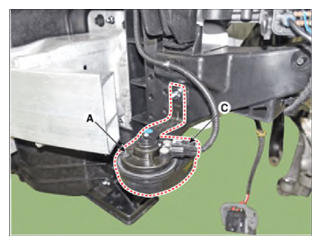

  2. Remove the bolts and disconnect the horn connectors (C), then remove the high pitch horn (B) and low pitch horn (A).
    G14723726Courtesy of HYUNDAI MOTOR AMERICA
    G14723727Courtesy of HYUNDAI MOTOR AMERICA
