Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Use the lift to lift up the vehicle.
- Remove the engine room rear under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
- Remove the heated oxygen sensor [Bank 1/Sensor 1].
(Refer to Engine Control/Fuel System - "HEATED OXYGEN SENSOR (HO2S) ")

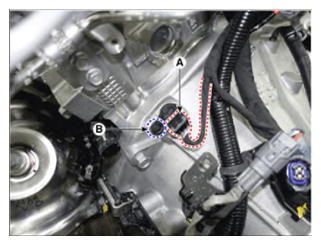

- Disconnect the crankshaft position sensor connector (A).
- Remove the installation bolt (B), and then vertically remove the sensor from the transaxle housing.
Tightening torque:
9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)
