Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the surge tank assembly.
(Refer to Engine Mechanical System - "SURGE TANK ")

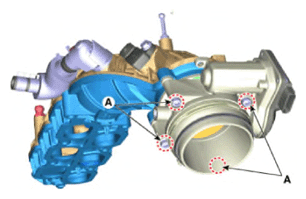

- After removing mounting bolts (A), remove the ETC module from the surge tank.
Tightening torque:
7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft)
