Repair Procedures: Removal
- Switch "OFF" the ignition and disconnect the battery negative (-) terminal.
- Remove the rear seat (LH).
(Refer to Body - "REAR SEAT ASSEMBLY ")

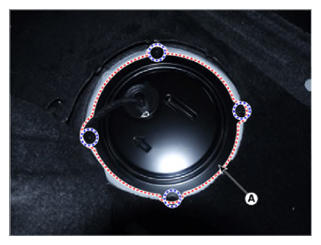

- Remove the fuel pump service cover (A) after loosening the mounting screws.

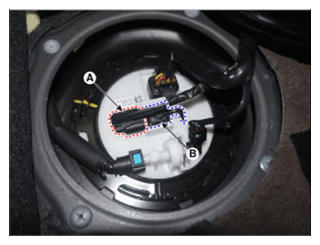

- Disconnect the fuel tank pressure sensor connector (A).
- Remove the fuel tank pressure sensor (B).
