Bank 1/Sensor 1
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the engine and transmission assembly.
(Engine Mechanical System - "Engine and Transmission Assembly")

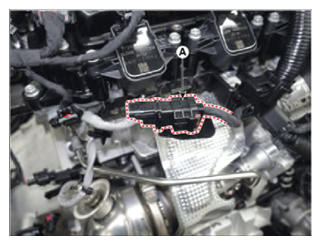

- Disconnect the heated oxygen sensor connector (A).

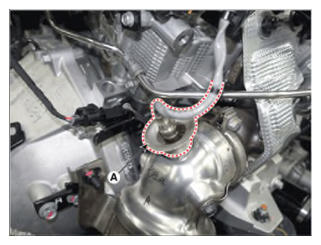

- Remove the heated oxygen sensor (A).NOTE:
- Note that the SST (Part No.: 09392-1Y100 or 09392-2H100) is useful when removing the heated oxygen sensor.
Tightening Torque:
35.3 - 45.1 N.m (3.6 - 4.6 kgf.m, 26.0 - 33.3 lb-ft)
