Bank 1/Sensor 2

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Use the lift to lift up the vehicle.
  3. Remove the engine room rear under cover.

    (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

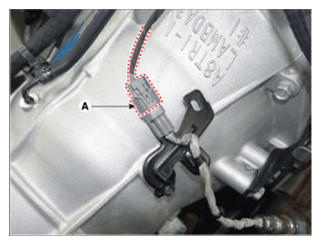

  4. Remove the heated oxygen sensor connector (A).
    G14728701Courtesy of HYUNDAI MOTOR AMERICA

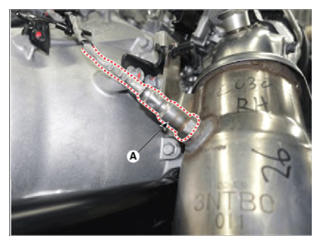

  5. Remove the heated oxygen sensor (A).

    Tightening Torque:

    35.3 - 45.1 N.m (3.6 - 4.6 kgf.m, 26.0 - 33.3 lb-ft)

    G14728702Courtesy of HYUNDAI MOTOR AMERICA
