Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
NOTE:- When removing the fuel pump relay, a Diagnostic Trouble Code (DTC) may occur. Delete the code with the diagnostic tool after completion of "Release Residual Pressure in Fuel Line" work.
- Remove the RH air cleaner.
(Refer to Engine Mechanical System - "REMOVAL AND INSTALLATION ")
- Remove the RH injector form.

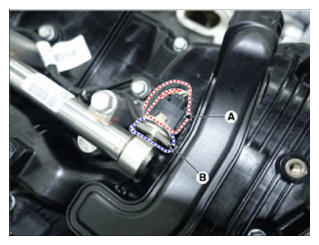

- Disconnect the rail pressure sensor connector (A).
- Remove the rail pressure sensor (B) from the delivery pipe.
Tightening torque:
30.4 ~ 35.3 N.m (3.1 ~ 3.6 kgf.m, 22.4 ~ 26.0 lb-ft)
