Removal and Installation

Remove the ignition coil.
(Refer to Engine Electrical System - "REPAIR PROCEDURES ")

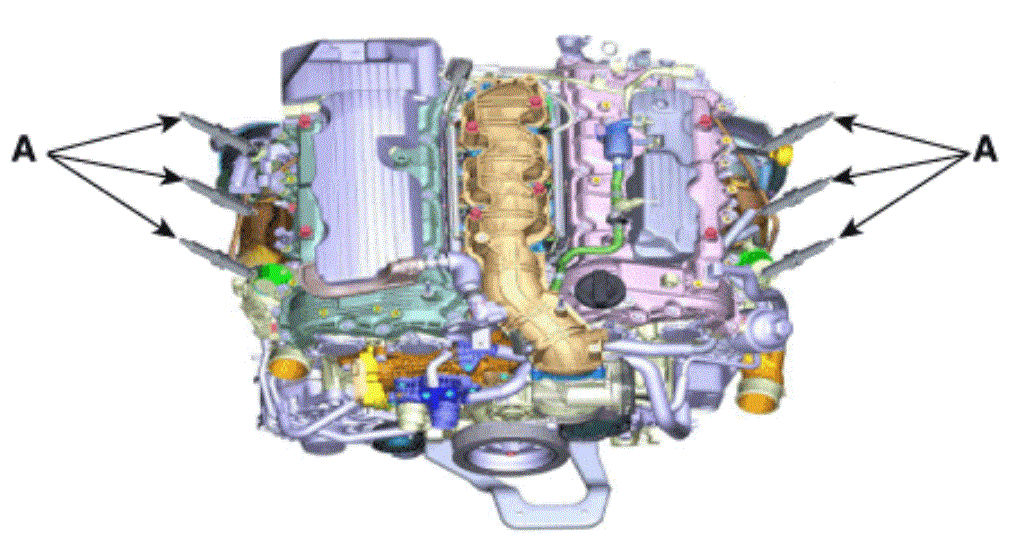

Using a spark plug wrench, remove the spark plugs (A).
Tightening torque:

15.7 - 23.5 N.m (1.6 - 2.4 kgf.m, 11.6 - 17.4 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Be careful that no contaminates enter into spark plug holes.
Install in the reverse order of removal.
