Repair Procedures: Disassembly

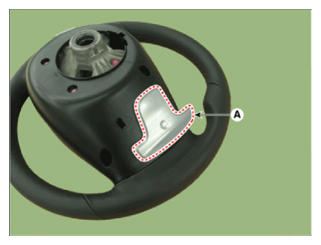

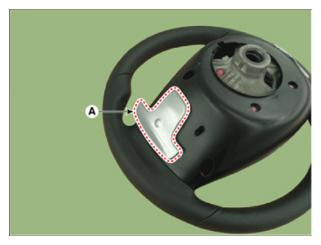

  1. Loosen the screw and then remove the paddle shift switch (A).
    G14722698Courtesy of HYUNDAI MOTOR AMERICA
    G14722699Courtesy of HYUNDAI MOTOR AMERICA

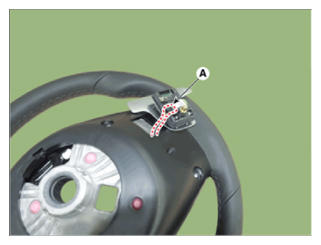

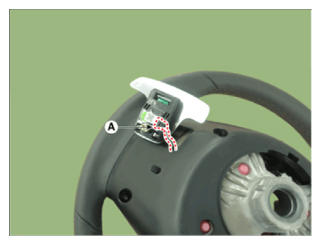

  2. Disconnect the paddle shift switch connector (A).
    G14722700Courtesy of HYUNDAI MOTOR AMERICA
    G14722701Courtesy of HYUNDAI MOTOR AMERICA

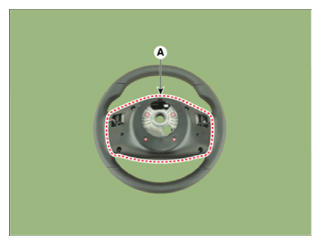

  3. Loosen the screw and then remove the lower cover (A).
    G14722702Courtesy of HYUNDAI MOTOR AMERICA

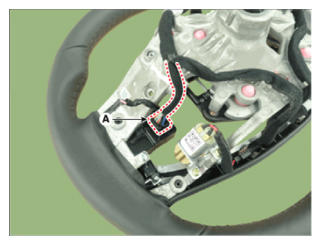

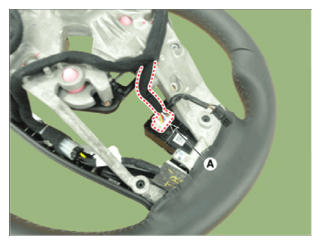

  4. Disconnect the remote control switch connector (A).
    G14722703Courtesy of HYUNDAI MOTOR AMERICA
    G14722704Courtesy of HYUNDAI MOTOR AMERICA

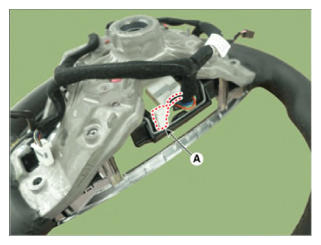

  5. Disconnect the ground connector (A).
    G14722705Courtesy of HYUNDAI MOTOR AMERICA

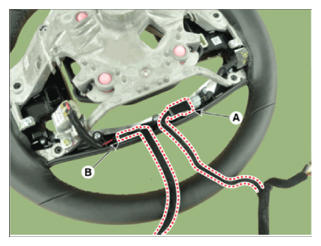

  6. Disconnect the heated steering wheel connector (A), Haptic motor connector (B) and then remove the wiring.
    G14722706Courtesy of HYUNDAI MOTOR AMERICA

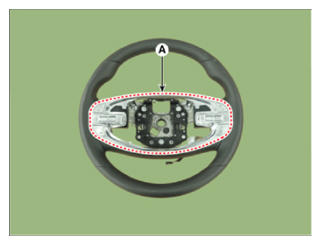

  7. Remove the remote control switch bezel (A).
    G14722707Courtesy of HYUNDAI MOTOR AMERICA

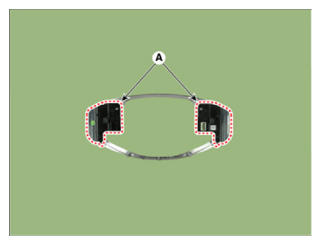

  8. Loosen the screw and then remove the remote control switch (A).
    G14722708Courtesy of HYUNDAI MOTOR AMERICA

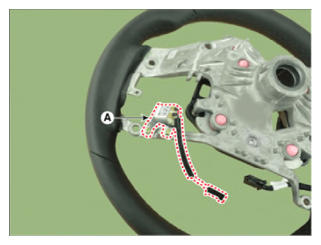

  9. Loosen the screw and then remove the haptic motor (A).
    G14722709Courtesy of HYUNDAI MOTOR AMERICA
  10. Reassembly in the reverse order of disassembly.
