Toe adjustment

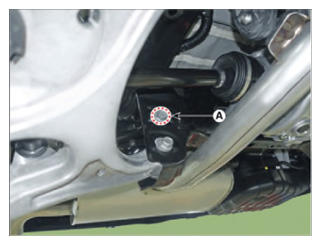

- Loosen the nut holding the assist arm cam bolt (A).
- Adjust rear toe by turning the rear assist arm cam bolt (A) clockwise or counter clockwise. Toe adjustment should be made by turning the right and left cam bolts by the same amount.
Toe
Total: 0.4°±0.1°
Individual: 0.2°±0.05°
| Cam bolt | Direction of rotation | Toe |
|---|---|---|
| Left side (Driver side) | clockwise | Increase (Toe out) |
| counterclockwise | Decrease (Toe in) | |
| Right side (Passenger side) | clockwise | Decrease (Toe in) |
| counterclockwise | Increase (Toe out) |
Information
- Variation per 1 scale: 0.36° when only adjusting the bolt of one side
