Repair Procedures: Removal
- Remove valve core and deflate the tire.

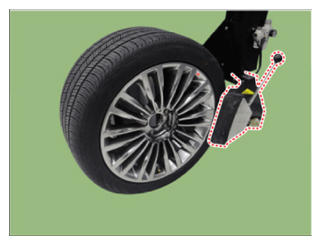

- Remove the side of the tire bead area from the wheel using tire changing machine.CAUTION:
- The tire bead should be broken approx. 90° from the valve side of the wheel. The bead breaker should not be set too deep.
- Avoid tire/tool contact with the valve on dismount.
- Dismount should end near the valve.

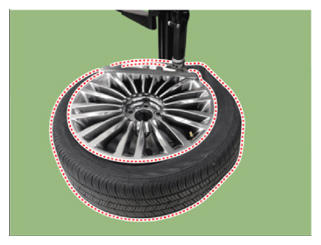

- Rotate the wheel clockwise.NOTE:

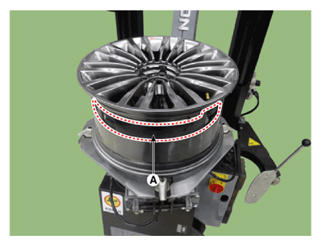

- When removing the tire, be careful not to damage the resonator duct (A).
