Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the rear propeller shaft.

    (Refer to Driveshaft and Axle - "REAR PROPELLER SHAFT ")

  3. Loosen the bolts (A) and nuts (B) and then removing the transmission bracket (C).

    [2WD]

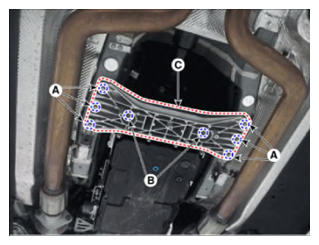

    G14729121Courtesy of HYUNDAI MOTOR AMERICA

    [4WD]

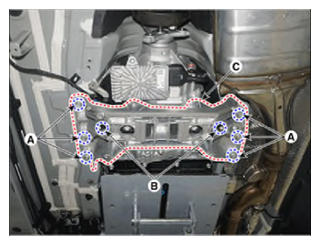

    G14729122Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • support the transmission solenoid valve body cover using a jack.
  4. Disconnect the parking switch connector (A).

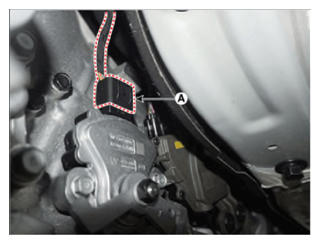

    G14729123Courtesy of HYUNDAI MOTOR AMERICA
  5. Loosen the faster and then separate the parking release cable (A).

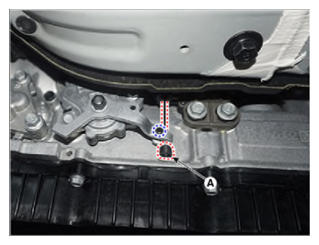

    G14729124Courtesy of HYUNDAI MOTOR AMERICA
  6. Loosen the nut (A) and the bolts (B) and then removing the parking switch.

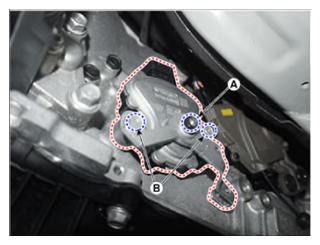

    G14729125Courtesy of HYUNDAI MOTOR AMERICA
