Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.

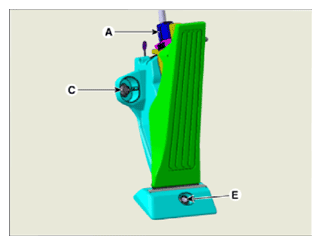

- Disconnect the accelator position sensor connector (A).

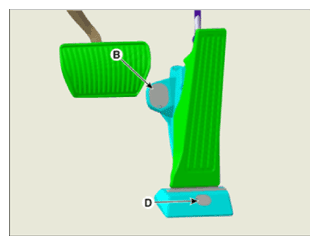

- Remove the upper mounting cap (B) and loosen the mounting nut (C).
- Remove the lower mounting cap (D) and loosen the mounting bolt (E).
Tightening torque:
8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)
