Steering Column Module (SCM) Switch

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
CAUTION:
  • Wait at least 30 seconds after separating the cable.
  1. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  2. Remove the steering column shroud lower panel.

    (Refer to Body - "STEERING COLUMN SHROUD PANEL ")

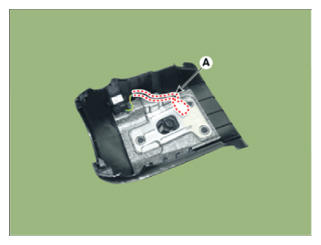

  3. Disconnect the steering module switch connector and clip (A).
    G14722778Courtesy of HYUNDAI MOTOR AMERICA
  4. Using the driver, remove the steering column module switch.
    G14722779Courtesy of HYUNDAI MOTOR AMERICA
  5. Install in the reverse order of removal.
