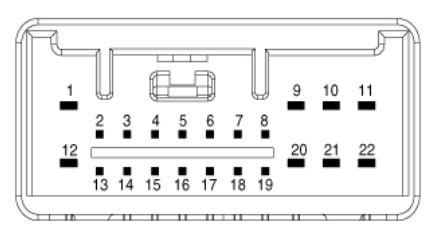

Terminal Function

Courtesy of HYUNDAI MOTOR AMERICA

Pin No	Description
1	B +
2	Tilt sensor input
3	Tele sensor input
4	-
5	-
6	B-CAN (High)
7	B-CAN (Low)
8	Haptic motor down output
9	Haptic motor up output
10	Battery + power
11	Tilt motor down output
12	IG 1
13	Position sensor power output
14	-
15	Tilt down switch input
16	-
17	-
18	Ground sensor
19	Ground
20
21	Tele motor forward direction output
22	Tele motor backward direction output
