Repair procedures: Inspection

  1. Remove the trunk lid trim after opening the trunk.

    (Refer to Body- "TRUNK LID TRIM ")

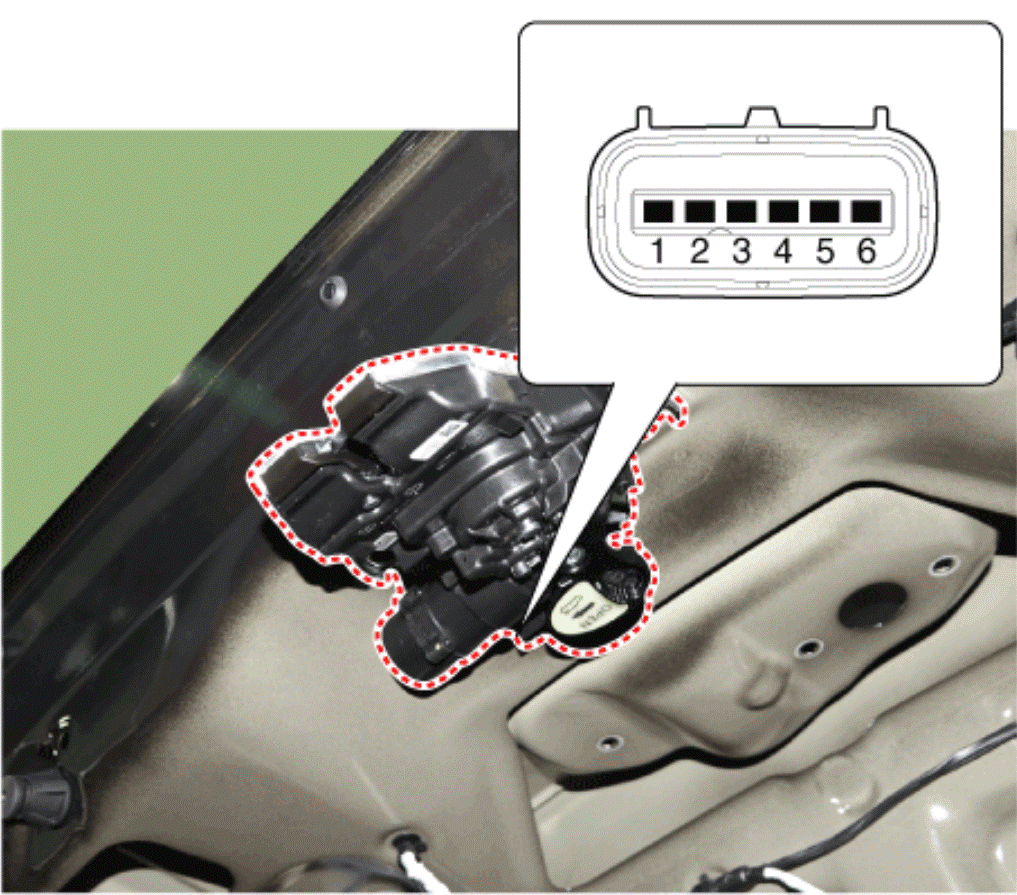

  2. Disconnect the power latch and cinching connectors.
    G15590095Courtesy of HYUNDAI MOTOR AMERICA
  3. Connect the power latch terminals directly to battery voltage (12V) and check that the motor operates smoothly.

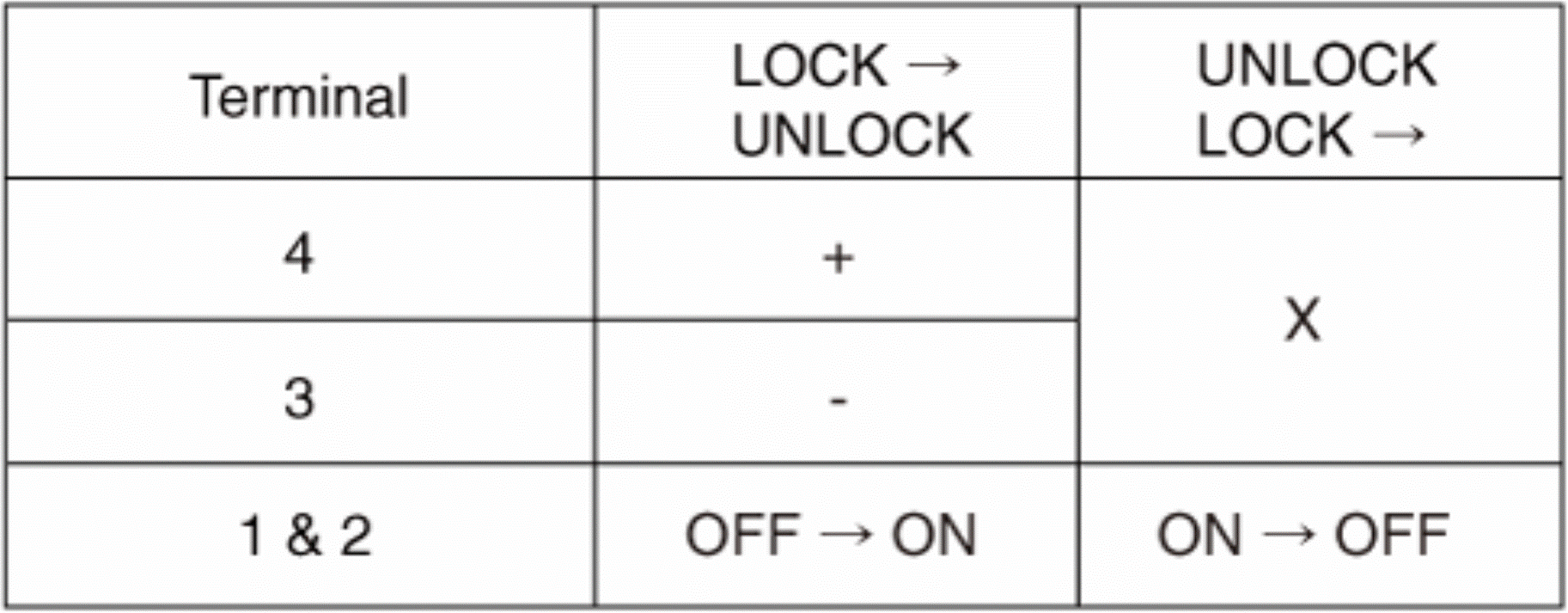

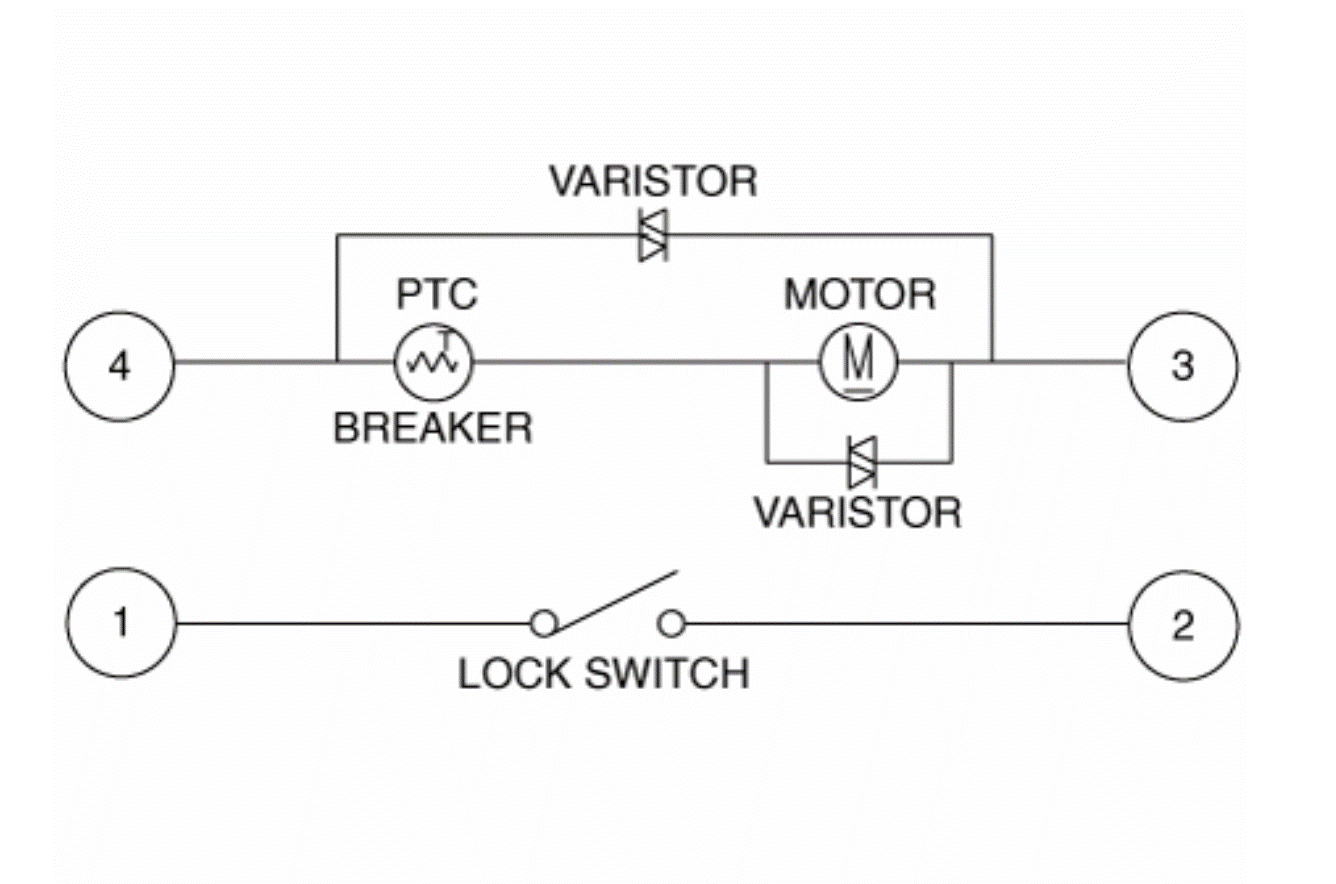

    [Latch & Actuator]

    G15590096Courtesy of HYUNDAI MOTOR AMERICA
    G15590097Courtesy of HYUNDAI MOTOR AMERICA

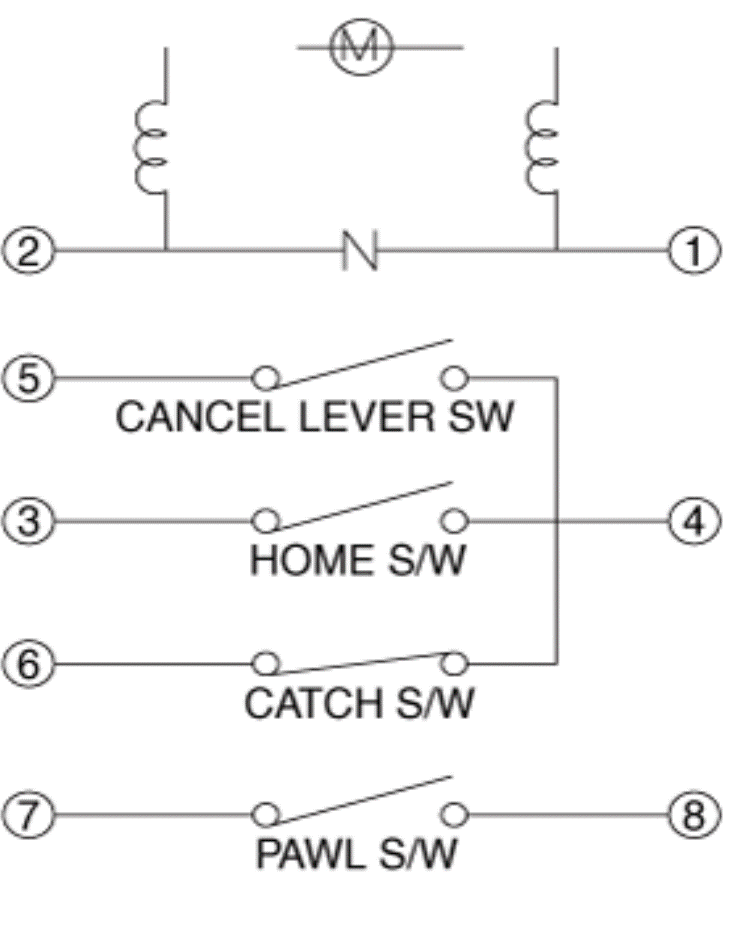

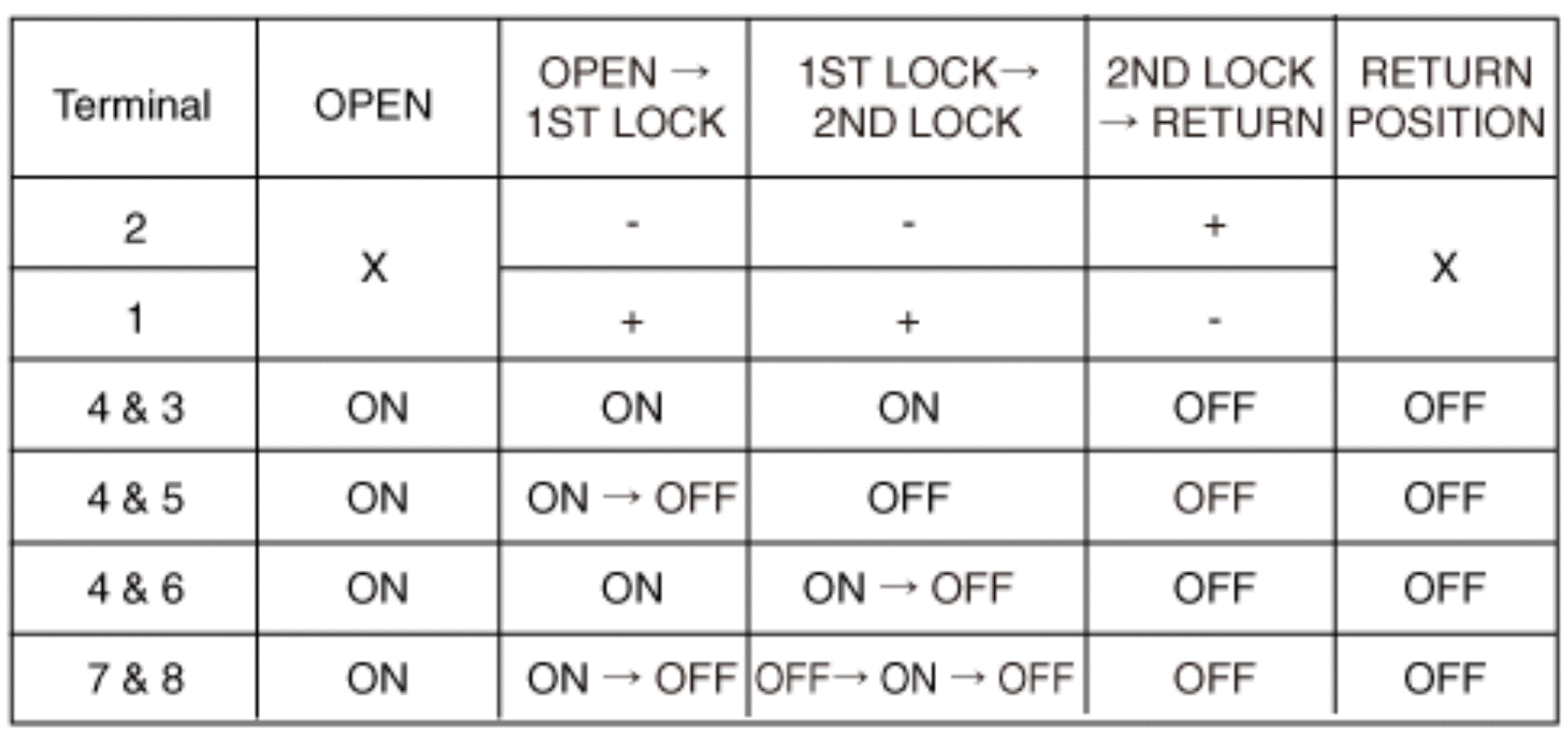

    [Cinching & Actuator]

    G15590098Courtesy of HYUNDAI MOTOR AMERICA
    G15590099Courtesy of HYUNDAI MOTOR AMERICA
