Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the left trunk trim after opening the trunk.

    (Refer to Body - "TRUNK TRIM ")

  3. Remove the trunk lid latch cover (A).
    G15590101Courtesy of HYUNDAI MOTOR AMERICA

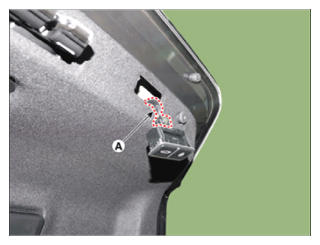

  4. Remove the power trunk lid inner switch (A).
    G15590102Courtesy of HYUNDAI MOTOR AMERICA
