[Bank 1/Sensor 2]

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

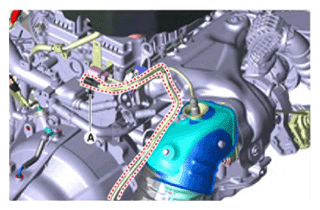

  2. Disconnect the connector (A).
    G15586807Courtesy of HYUNDAI MOTOR AMERICA
  3. Lift the vehicle.

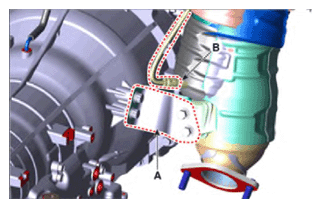

  4. Remove the catalytic converter bracket (A).
  5. Remove the sensor (B).
G15586808Courtesy of HYUNDAI MOTOR AMERICA
