Repair Procedures: Removal

NOTE:

Prior to replacing the 4WD ECU, back up the 4WD ECU's clutch learing with the GDS tool.

(Refer to 4WD Control System - "REPAIR PROCEDURES ")

Turn ignition switch OFF and disconnect the negative (-) battery cable.
Remove the crash pad lower panel.
(Refer to Body - "CRASH PAD LOWER PANEL ")
Remove the knee air back.
(Refer to Restraint - "KNEE AIRBAG (KAB) MODULE ")

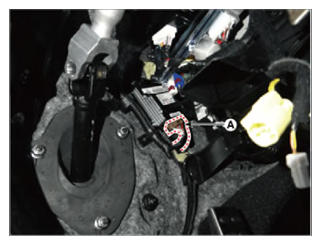

Disconnect the AWD ECU connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

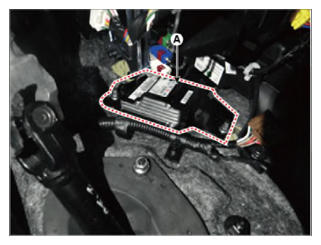

Remove the AWD ECU bracket nut and then removing the AWD ECU (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
