Bank 1/Intake
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the variable force solenoid (VFS).
(Refer to Engine Control System - "VARIABLE FORCE SOLENOID (VFS) ")
- Remove the cylinder head assembly.
(Refer to Engine Mechanical System - "CYLINDER HEAD ")

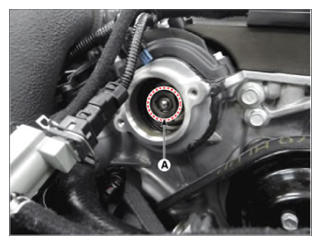

- Remove the installation nut (A), and then remove the cvvt oil control valve from the engine.
