Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

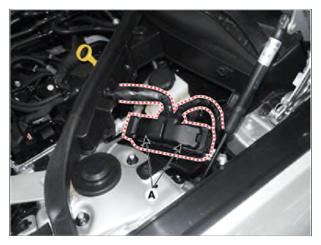

  2. Disconnect the ECM connector (A).
    G15591401Courtesy of HYUNDAI MOTOR AMERICA

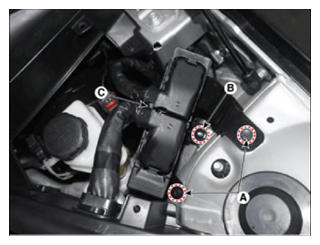

  3. Remove the ECM bracket assembly (C) after loosening the mounting bolt (A) and nuts (B).
    G15591402Courtesy of HYUNDAI MOTOR AMERICA

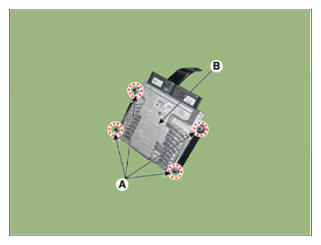

  4. Remove the ECM (B) after loosening the mounting nuts (A).
G15591403Courtesy of HYUNDAI MOTOR AMERICA
