Repair Procedures: Removal
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the rear seat cushion.
(Refer to Body - "REAR SEAT ASSEMBLY ")

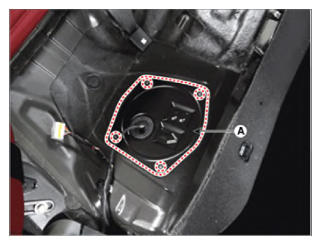

- Remove the sub fuel sender service cover (A) after loosening the mounting screws.

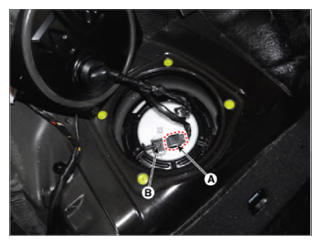

- Disconnect the fuel tank pressure sensor conector (A).
- Remove the fuel tank pressure sensor (B) after releasing the hooks vertically.
