System Initialization

System initialization is needed to recognize the closing position of the tailgate to power tailgate module.

The initialization process after battery power reset, system initialization is needed to recognize the maximum opening and closing tailgate position exactly.

The power tailgate operates normally after system initialization is completed.

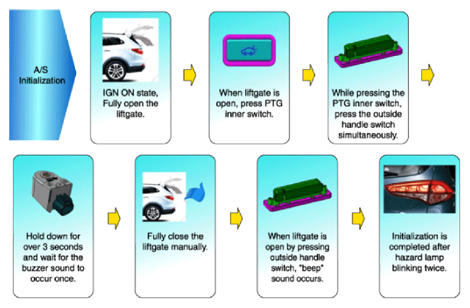

Procedure:

G14764749Courtesy of HYUNDAI MOTOR AMERICA
