Removal And Installation
NOTE:
- Install the component to the specified torques.
- If a part is dropped, replace it with a new one and discard the dropped part as invisible damage may be caused.
- Switch "OFF" the ignition and disconnect the battery negative (-) terminal.
- Remove the Intake Manifold.
(Refer to Engine Mechanical System - "INTAKE MANIFOLD ")
- Remove the Delivery Pipe & Injector Assembly.
(Refer to Fuel Delivery System - "DELIVERY PIPE ")
- Disconnect the oil temperature & oil pressure sensor connector (A).

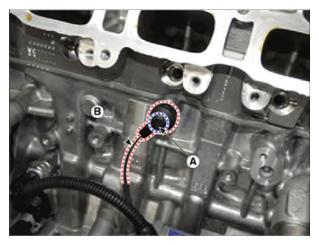

- Remove the installation bolt (B), and then remove the crankshaft position sensor.
Tightening torque:
7.8 - 11.7 N.m (1.9 - 2.4 kgf.m, 5.7 - 8.6 lb-ft)
- Install in the reverse order of removal.
