Removal And Installation
NOTE:
- Install the component with the specified torques.
- If a part is dropped, replace it with a new one and discard the dropped part as invisible damage may be caused.
- Be careful of foreign material not to flow into the valve.
- Switch "OFF" the ignition and disconnect the battery negative (-) terminal.
- Remove the Engine Cover.
(Refer to Engine Mechanical System - "ENGINE COVER ")

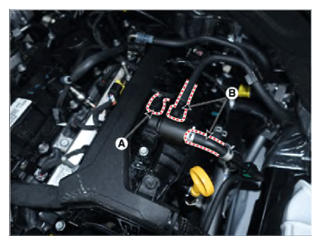

- Disconnect the purge control solenoid valve connector (A).
- Disconnect the favor hose (B), remove the purge control solenoid valve from the bracket.
- Install in the reverse order of removal.
