Removal And Installation
CAUTION:
- Install the component to the specified torques.
- Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.
- Release the Residual Pressure in Fuel Line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
- Switch "OFF" the ignition and disconnect the battery negative (-) terminal.
- Remove the Intake Manifold.
(Refer to Engine Mechanical System - "INTAKE MANIFOLD ")

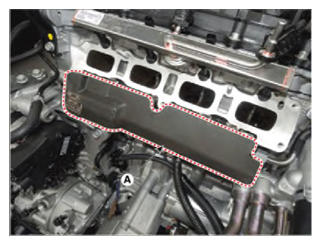

- Remove the delivery pipe foam (A).

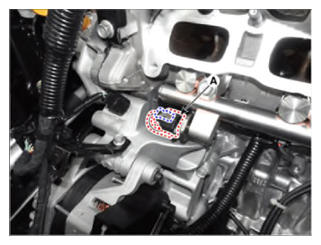

- Disconnect the rail pressure sensor connector (A)

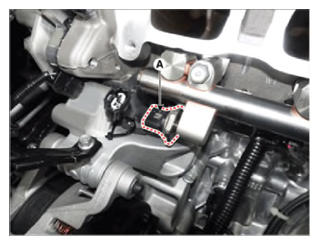

- Remove the rail pressure sensor (A) from the delivery pipe.
Tightening torque:
30.4 - 35.3 N.m (3.1 - 3.6 kgf.m, 22.4 - 26.0 lb-ft)
- Install in the reverse order of removal.
