Removal And Installation

Turn the ignition switch OFF and disconnect the battery (-) terminal.
Remove the engine cover.
(Refer to Engine Mechanical System - "ENGINE COVER ")

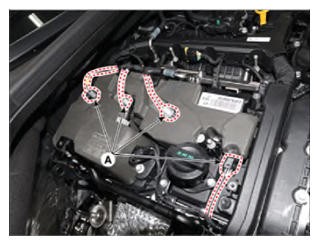

Disconnect the ignition coil connectors (A).

G14753019

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

When removing the ignition coil connector, pull the lock pin (A) and push the clip.

G14753020

Courtesy of HYUNDAI MOTOR AMERICA

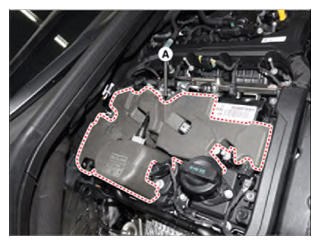

Remove the ignition coil form (A).

Courtesy of HYUNDAI MOTOR AMERICA

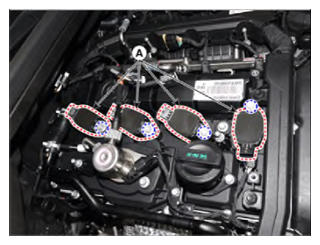

Remove the ignition coils (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 Ib-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
