Wheel Alignment: Tires/Wheels/Alignment: Tire: Removal

  1. Remove valve core and deflate the tire.

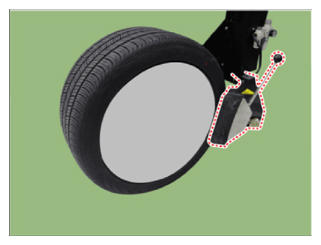

  2. Remove the side of the tire bead area from the wheel using tire changing machine.
    G14753636Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Check if the bead breaker is sufficiently separated from the TPMS sensor.
    NOTE:
    • Remove the bead at 90 degrees, 180 degrees, and 270 degrees from the valve.

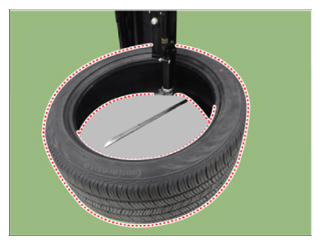

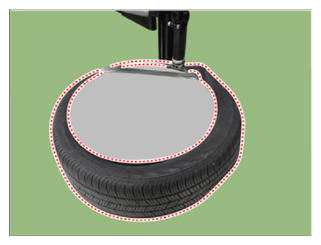

  3. Rotate the wheel clockwise.
    G14753637Courtesy of HYUNDAI MOTOR AMERICA
    G14753638Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Position the TPMS sensor at 12 o'clock from the head of the tire changer.
    • When lifting the bead with the lever, make sure that the sensor is not impacted.

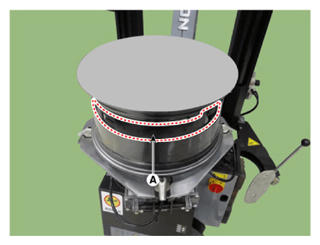

    • When removing the tire, be careful not to damage the resonator duct (A).
      G14753639Courtesy of HYUNDAI MOTOR AMERICA
