Delivery Pipe: Installation
- Install in the reverse order of removal.NOTE:

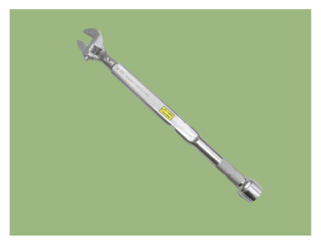

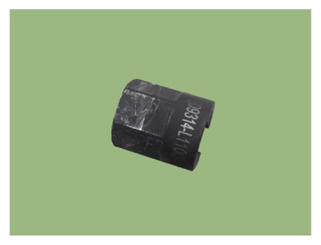

- Use the SST (09314-L110) and spanner torque wrench (27 mm) to install the high pressure fuel pipe flange nut (A).
- Do not reuse the high pressure fuel pipe.
- Be careful not to transform the shape of the high pressure fuel pipe.
- Torque wrench should not be tilt when you tighten the nut.
- Follow the order and the tightening torque when you assemble.
- Inspect fuel leakage after high pressure fuel pipe assembly.

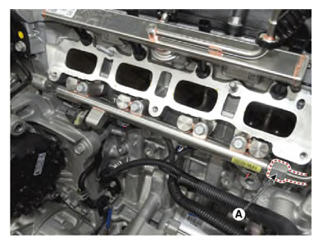

- Use the SST (09314-L110) and spanner torque wrench (27 mm) to install the high pressure fuel pipe flange nut (A).
