Removal And Installation

Turn the ignition switch OFF and disconnect the battery negative (-) cable.

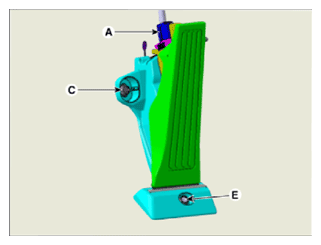

Disconnector the accelerator position sensor connector (A).

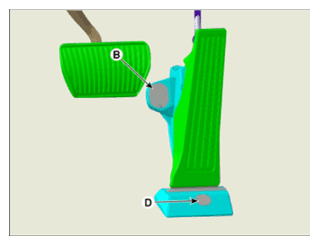

Remove the upper mounting cap (B) and loosen the mounting nut (C).
Remove the lower mounting cap (D) and loosen the mounting bolt (E).
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5-10.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
