Removal And Installation
NOTE:
- Install the component to the specified torques.
- Note that internal damage may occur when the component is dropped. In this case, use it after inspecting.
NOTE:
- Be careful not to let foreign substances inside the sensor.
- Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

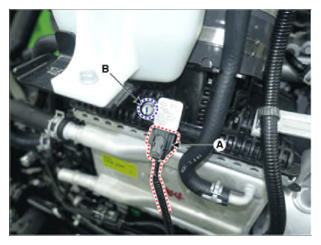

- Disconnect the boost pressure sensor connector (A).
- Remove the boost pressure sensor after removing the mounting bolts (B).
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
- Install in the reverse order of removal.
