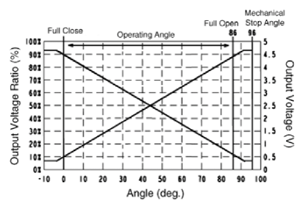

[TPS 2]

Item	Duty (%)	Output Voltage (V) [Supply Voltage = 5V]
Full Close (C.T)	89.2 - 90.8%	4.46-4.54
Full Open (W.O.T)	10.2 - 13.3%	0.51 - 0.67

Courtesy of HYUNDAI MOTOR AMERICA
