Removal And Installation

Turn ignition switch OFF and disconnect the battery negative (-) cable.
Remove the Engine Room Cover.
(Refer to Engine Mechanical System - "ENGINE COVER ")

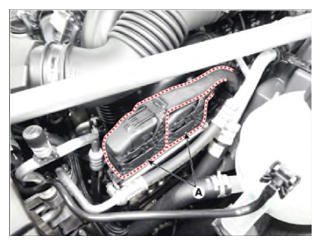

Disconnector the ECM connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

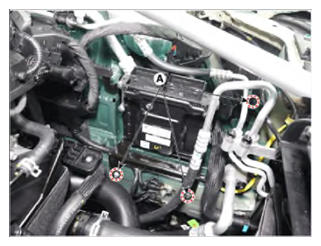

After removing the ECM bracket installation nuts (A), remove the ECM bracket assembly.
Tightening torque:

8.8 - 11.8 N.m (0.9 - 1.2 kgf.m, 6.5 - 8.7 lb-lt)

Courtesy of HYUNDAI MOTOR AMERICA

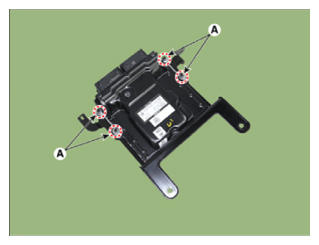

After removing the installation nuts (A), remove the ECM from the bracket.
Tightening torque:

7.8 - 11.7 N.m (0.8 - 1.2 kgf.m, 5.7 - 8.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
