Engine Coolant Temperature Sensor (ECTS) - Water Pump Housing Side

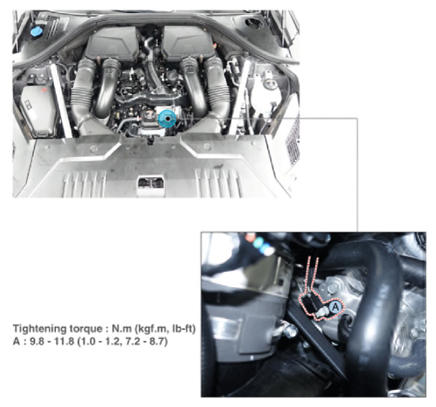

Fig 1: Engine Coolant Temperature Sensor Components Location With Torque Specification (Water Pump Housing Side)
G14766363Courtesy of HYUNDAI MOTOR AMERICA
