[MPI Injector]
- Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
CAUTION:- When removing the fuel pump relay, a Diagnostic Trouble Code (DTC) may occur. Delete the code with the diagnostic tool after completion of "Release Residual Pressure in Fuel Line" work.
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the engine cover.
(Refer to Engine Mechanical System - "ENGINE COVER ")
- Remove the air cleaner.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Remove the intake manifold.
(Refer to Engine Mechanical System - "INTAKE MANIFOLD ")

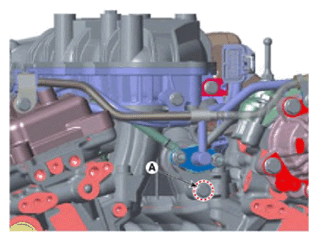

- Remove the mounting bolt (A).
Tightening torque:
29.4 - 35.3 N.m (3.0 - 3.6 kgf.m, 21.7 - 26.0 lb-ft)
- Remove the low pressure delivery pipe (A) from intake manifold.NOTE:
- When removing/installing the low pressure delivery pipe (A), take measures not to allow the foreign matter to enter the cylinder.
- If foreign matter enters the cylinder/intake manifold, immediately remove it.
- Disconnect the injector connector (A).

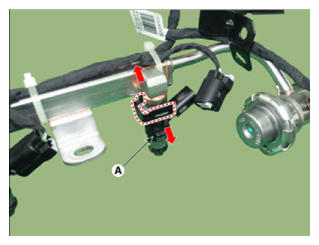

- Release the fixing clip and then remove the injector (A) from delivery pipe.
