Removal And Installation
NOTE:
- Install the component with the specified torques.
- Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.
- Be sure not to apply oil or lubricant to the end of the hoses when connecting the PCSV hose.
NOTE:
- Be careful of foreign material not to flow into the valve.
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the engine cover.
(Refer to Engine Mechanical System - "ENGINE COVER ")
- Remove the LH air cleaner.
(Refer to Engine Mechanical System - "AIR CLEANER ")

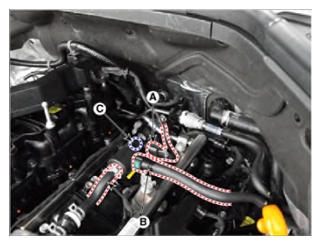

- Disconnect the purge control solenoid valve connector (A).
- Remove the vapor hose (B).
- After removing the installation bolt (C), remove the purge control solenoid valve.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
- Install in the reverse order of removal.
