Power Latch Assembly: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the trunk lid trim after opening the trunk.

    (Refer to Body - "TRUNK LID TRIM ")

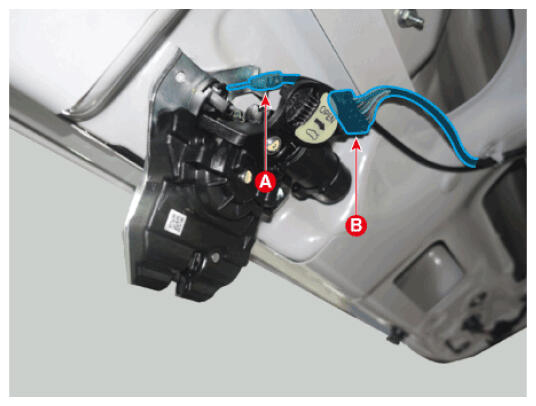

  3. Disconnect the trunk emergency cable (A) and connector (B).
    G16872920Courtesy of HYUNDAI MOTOR AMERICA

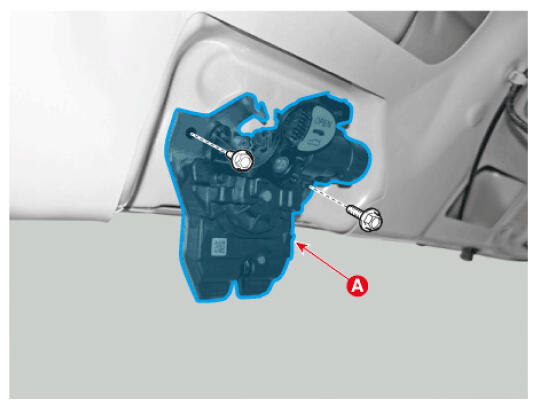

  4. Remove the power latch (A) after loosening the mounting bolts.
G16872921Courtesy of HYUNDAI MOTOR AMERICA
