Power Trunk Inner Switch: Inspection

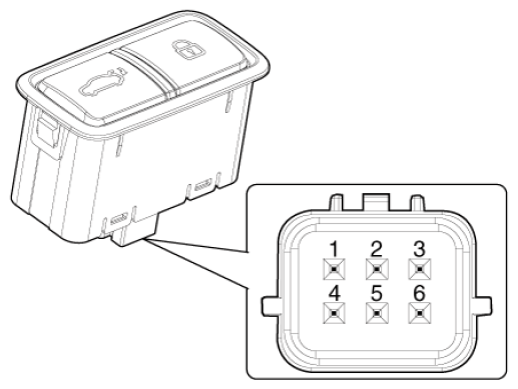

  1. Remove the trunk inner switch.

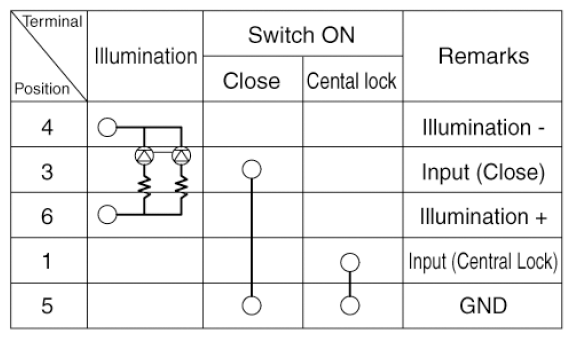

  2. Check for continuity between terminals of the trunk inner switch.
G16872932Courtesy of HYUNDAI MOTOR AMERICA
G16872933Courtesy of HYUNDAI MOTOR AMERICA
