Power Trunk Inner Switch: Removal

  1. Disconnect the negative (-) battery terminal.

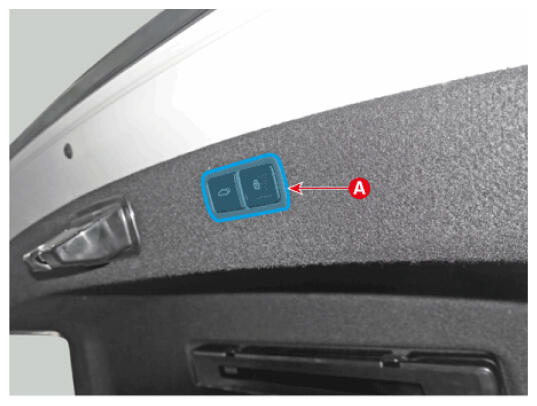

  2. Remove the trunk inner switch (A) from the trunk lid trim.
    G16872930Courtesy of HYUNDAI MOTOR AMERICA

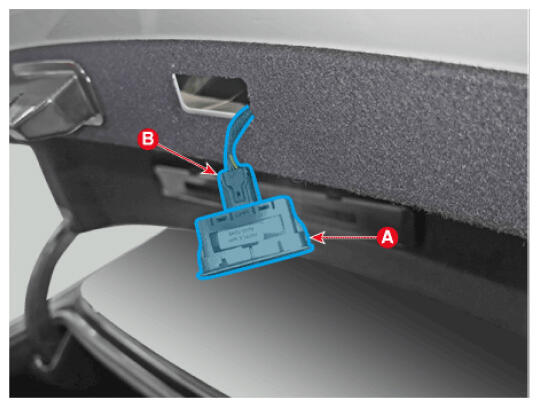

  3. Disconnect the connector (B) and remove the trunk inner switch (A).
G16872931Courtesy of HYUNDAI MOTOR AMERICA
