Components And Components Location: Components

Courtesy of HYUNDAI MOTOR AMERICA

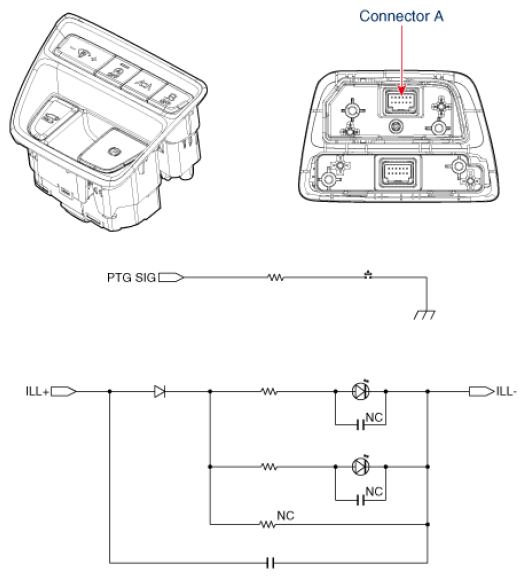

Connector A	Pin	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	Illumination (+)
	2	-
	3	EPB signal 1
	4	EPB signal 2
	5	EPB signal 3
	6	EPB signal 4
	7	-
	8	Power trunk Lid signal
	9	-
	10	-
	11	Illumination (-)
	12	Ground
