Power Trunk Open-Close Switch: Inspection

  1. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  2. Check for continuity between terminals of the power trunk switch.

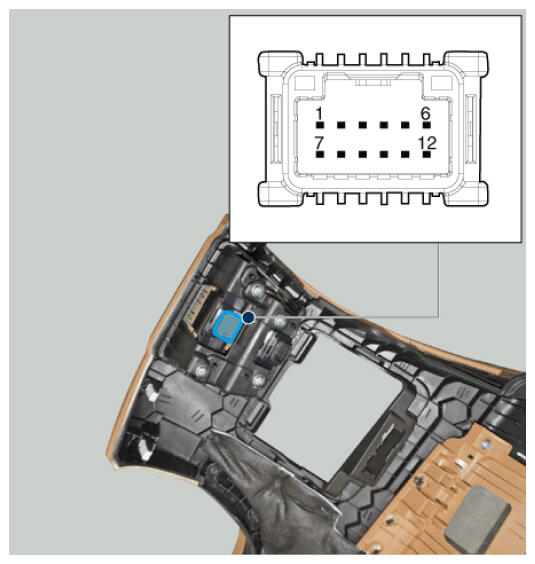

G16872936Courtesy of HYUNDAI MOTOR AMERICA

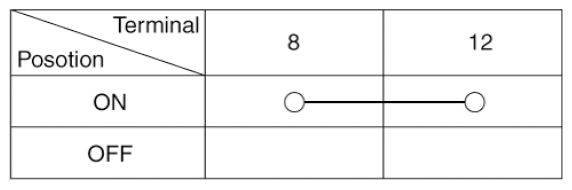

G16872937Courtesy of HYUNDAI MOTOR AMERICA
