Power Window Sub Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front/rear door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

    (Refer to Body - "REAR DOOR TRIM ")

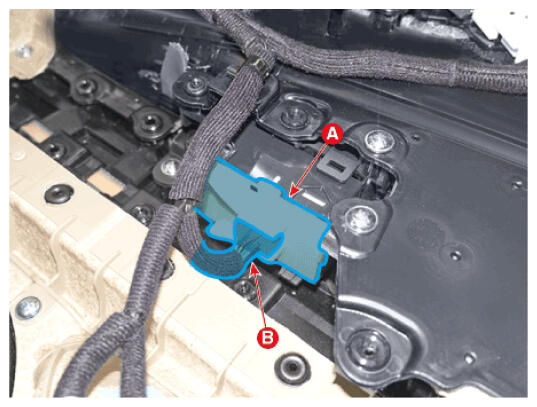

  3. Disconnect the connector (B) and remove the power window switch (A).
G16872882Courtesy of HYUNDAI MOTOR AMERICA
