Steering Column Module (SCM)

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

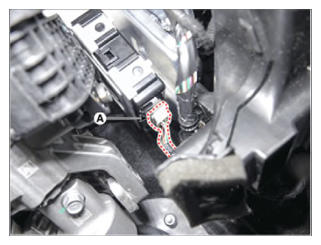

  3. Disconnect the steering column module connector (A).
    G15548855Courtesy of HYUNDAI MOTOR AMERICA

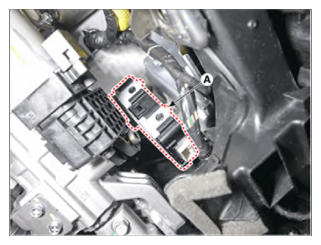

  4. Loosen the steering column module bracket bolts and then remove the steering column module (A)
    G15548856Courtesy of HYUNDAI MOTOR AMERICA
  5. Install in the reverse order of removal.
